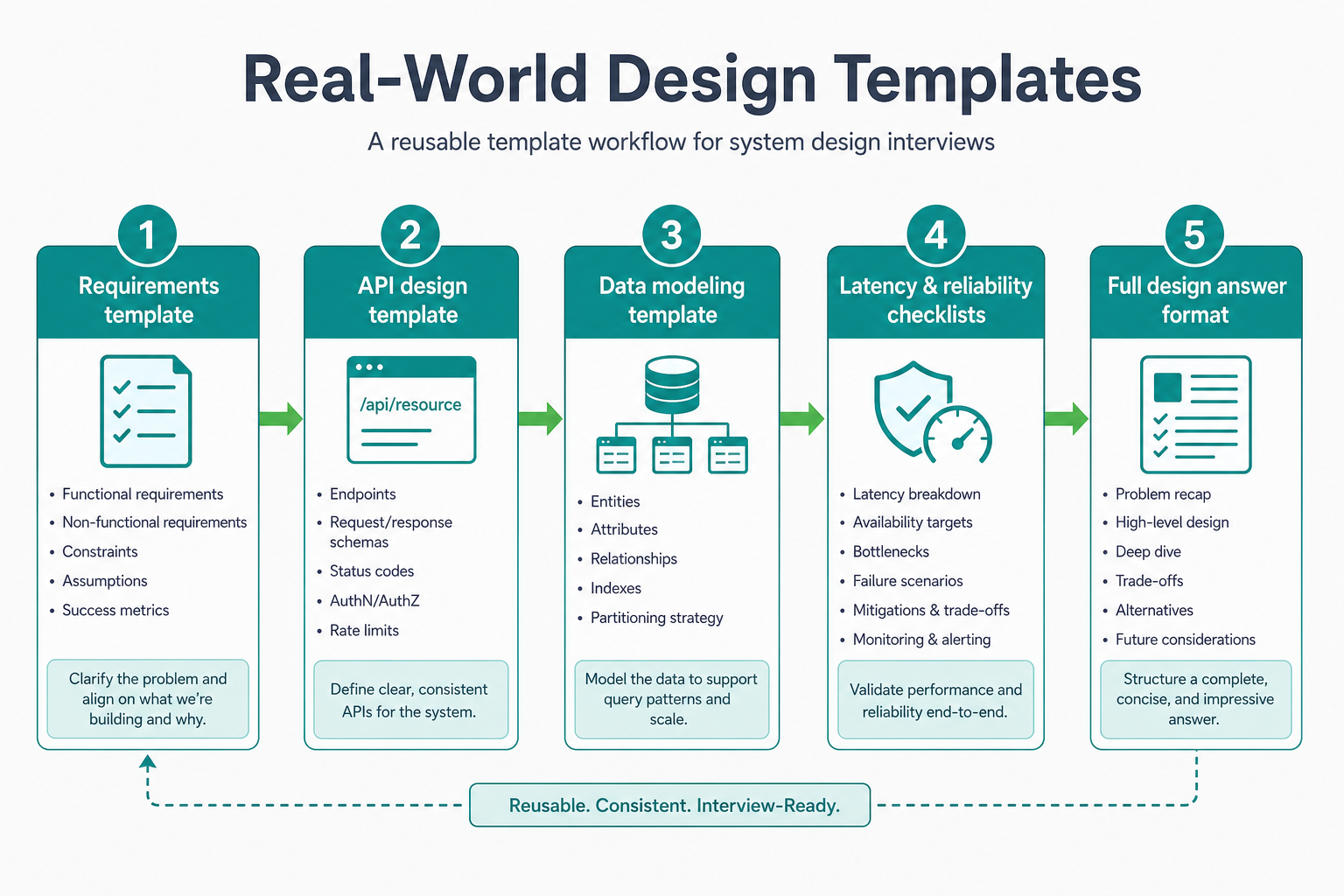

Real-World Design Templates

Templates help you avoid blank-page syndrome. Reusable thinking models speed up reasoning in interviews and real work.

---

Why Templates Matter

When you're asked to design a system, templates provide:

• Structure: Know what to cover
• Speed: Don't waste time figuring out what to think about
• Completeness: Ensure you don't miss important areas
• Confidence: Have a framework to fall back on

---

Requirement Analysis Template

Template Structure

1. FUNCTIONAL REQUIREMENTS
   - Core features: [List]
   - Optional features: [List]
   - Out of scope: [List]

2. NON-FUNCTIONAL REQUIREMENTS
   - Scale: [Users, requests/day, data volume]
   - Performance: [Latency, throughput]
   - Availability: [Uptime %]
   - Consistency: [Strong/Eventual]
   - Durability: [Data loss tolerance]

3. CONSTRAINTS
   - Technical: [Technologies, infrastructure]
   - Business: [Budget, timeline]
   - Team: [Size, expertise]

4. ASSUMPTIONS
   - [List assumptions and validate]

Example: URL Shortener

Functional Requirements:

• Core: Create short URL, redirect to long URL
• Optional: Custom aliases, analytics, expiration
• Out of scope: User authentication, URL editing

Non-Functional Requirements:

• Scale: 100M URLs/day, 10B redirects/day
• Performance: Redirect < 10ms, Creation < 100ms
• Availability: 99.9% uptime
• Consistency: Eventual consistency acceptable
• Durability: No data loss

Constraints:

• Technical: Must use existing infrastructure
• Business: Launch in 3 months
• Team: 5 engineers

Assumptions:

• URLs don't expire (permanent)
• No user authentication needed
• Analytics optional for MVP

---

API Design Template

Template Structure

1. ENDPOINTS
   - [Method] [Path]: [Description]
   - Request: [Parameters, body]
   - Response: [Status codes, body]
   - Errors: [Error codes, messages]

2. AUTHENTICATION
   - [Method: API key, OAuth, JWT]
   - [Where: Header, query, body]

3. RATE LIMITING
   - [Limits per user/IP]
   - [Throttling strategy]

4. VERSIONING
   - [Strategy: URL, header]
   - [Backward compatibility]

5. DATA MODELS
   - [Request/Response schemas]

Example: URL Shortener API

Endpoints:

• POST /api/v1/shorten: Create short URL

  • Request: { "longUrl": "https://example.com" }
  • Response: { "shortUrl": "https://short.ly/abc123" }
  • Errors: 400 (invalid URL), 429 (rate limit)

• GET /api/v1/:shortUrl: Redirect to long URL

  • Response: 302 redirect
  • Errors: 404 (not found)

Authentication:

• API key in header: X-API-Key: <key>
• Optional for redirects (public)

Rate Limiting:

• 100 requests/minute per API key
• 1000 redirects/minute per IP

Versioning:

• URL-based: /api/v1/, /api/v2/
• Backward compatible for 6 months

Data Models:

{
  "longUrl": "string (required, max 2048 chars)",
  "shortUrl": "string (generated, 7 chars)",
  "createdAt": "timestamp",
  "expiresAt": "timestamp (optional)"
}

---

Data Modeling Template

Template Structure

1. ENTITIES
   - [Entity name]: [Description]
     - Attributes: [List]
     - Relationships: [List]

2. STORAGE STRATEGY
   - [SQL/NoSQL choice and reasoning]
   - [Sharding strategy]
   - [Replication strategy]

3. INDEXING
   - [Primary keys]
   - [Secondary indexes]
   - [Composite indexes]

4. DATA ACCESS PATTERNS
   - [Read patterns: queries, frequency]
   - [Write patterns: inserts, updates, frequency]

Example: Social Media Feed

Entities:

• User: id, username, email, createdAt
  • Relationships: follows many Users, has many Posts
• Post: id, userId, content, createdAt
  • Relationships: belongs to User, has many Likes
• Feed: userId, postId, createdAt
  • Relationships: belongs to User, belongs to Post

Storage Strategy:

• SQL (PostgreSQL): Users, Posts (structured data, complex queries)
• NoSQL (Cassandra): Feeds (high scale, simple queries)
• Sharding: By userId (hash-based)
• Replication: 3 replicas per shard

Indexing:

• Users: Primary key (id), Index (username, email)
• Posts: Primary key (id), Index (userId, createdAt)
• Feeds: Primary key (userId, createdAt), Index (postId)

Data Access Patterns:

• Read: Get feed by userId (high frequency, needs index on userId)
• Write: Insert post (medium frequency, needs index on userId, createdAt)
• Write: Insert feed entry (high frequency, needs index on userId, createdAt)

---

Latency Estimation Template

Template Structure

1. REQUEST FLOW
   - [Component] → [Component]: [Latency]
   - Total: [Sum]

2. BOTTLENECKS
   - [Component]: [Current latency, target latency]

3. OPTIMIZATION STRATEGIES
   - [Strategy]: [Expected improvement]

4. TARGET LATENCY
   - [p50, p95, p99]

Example: URL Redirect

Request Flow:

• Client → Load Balancer: 1ms
• Load Balancer → Redirect Service: 2ms
• Redirect Service → Cache (hit): 1ms
• Redirect Service → Database (miss): 50ms
• Redirect Service → Client: 2ms
• Total (cache hit): 6ms
• Total (cache miss): 55ms

Bottlenecks:

• Database query: 50ms (target: < 10ms with cache)

Optimization Strategies:

• Cache hot URLs: Reduce database queries by 80%
• Use CDN: Reduce network latency by 50%
• Database read replicas: Reduce database latency by 30%

Target Latency:

• p50: 5ms (cache hit)
• p95: 10ms (cache hit)
• p99: 50ms (cache miss, acceptable)

---

Reliability Checklist

Template Structure

1. SINGLE POINTS OF FAILURE
   - [Component]: [Risk, mitigation]

2. FAILURE SCENARIOS
   - [Scenario]: [Impact, handling]

3. MONITORING
   - [Metrics to track]
   - [Alerts to set up]

4. RECOVERY STRATEGIES
   - [Strategy]: [When to use]

Example: Notification System

Single Points of Failure:

• Database: Risk (all data), Mitigation (replication, backups)
• Queue: Risk (all messages), Mitigation (replication, persistence)
• Workers: Risk (processing stops), Mitigation (multiple workers, auto-restart)

Failure Scenarios:

• Database down: Impact (can't store notifications), Handling (queue messages, process when DB recovers)
• Queue full: Impact (can't accept new requests), Handling (reject requests, return error)
• Worker crash: Impact (messages not processed), Handling (another worker picks up)

Monitoring:

• Queue depth (alert if > 10K messages)
• Worker health (alert if workers down)
• Database connections (alert if > 80% capacity)
• Error rate (alert if > 1%)

Recovery Strategies:

• Database failure: Switch to read replica, restore from backup
• Queue failure: Use backup queue, replay messages
• Worker failure: Auto-restart, scale up workers

---

System Design Answer Format

Template Structure

1. REQUIREMENTS CLARIFICATION
   - [Questions asked, assumptions made]

2. HIGH-LEVEL ARCHITECTURE
   - [Diagram with components]
   - [Data flow description]

3. DETAILED DESIGN
   - [Component 1]: [Purpose, technology, scale]
   - [Component 2]: [Purpose, technology, scale]
   - ...

4. SCALE ESTIMATIONS
   - [Storage: size, growth]
   - [Throughput: requests/second]
   - [Bandwidth: data transfer]

5. TRADE-OFFS
   - [Decision]: [Pros, cons, reasoning]

6. FAILURE HANDLING
   - [Scenario]: [How system handles it]

7. FUTURE IMPROVEMENTS
   - [What to optimize next]

Example: URL Shortener

Requirements Clarification:

• Scale: 100M URLs/day, 10B redirects/day
• Latency: Redirect < 10ms, Creation < 100ms
• Availability: 99.9% uptime
• URLs don't expire

High-Level Architecture:

Client → Load Balancer → API/Redirect Service →
Cache (Redis) → Database (Cassandra) →
Message Queue → Analytics Service

Detailed Design:

• API Service: Handles URL creation (Node.js, 100 req/s per instance)
• Redirect Service: Handles redirects (Node.js, 10K req/s per instance)
• Cache: Redis for hot URLs (80% hit rate, 7-day TTL)
• Database: Cassandra for URL storage (sharded by hash, 3 replicas)
• Message Queue: Kafka for click events (10K events/s)
• Analytics Service: Processes click events (Python, async)

Scale Estimations:

• Storage: 100M URLs/day × 365 days = 36.5B URLs/year × 100 bytes = 3.65 TB/year
• Throughput: 10B redirects/day = 115K redirects/second
• Bandwidth: 115K req/s × 1KB = 115 MB/s

Trade-offs:

• NoSQL (Cassandra) over SQL: Chose for horizontal scaling, accepting eventual consistency
• Cache-aside over write-through: Chose for simplicity, accepting cache miss penalty
• Async analytics over sync: Chose for scalability, accepting delay

Failure Handling:

• Database failure: Redirect service falls back to cache (degraded mode)
• Cache failure: Redirect service falls back to database (slower but functional)
• Analytics failure: Events queued, processed when service recovers

Future Improvements:

• Add CDN for edge caching
• Implement URL expiration
• Add custom aliases
• Optimize database sharding strategy

---

Thinking Aloud Like a Senior Engineer

Let me walk you through how I'd actually use templates when designing a system. This is the real-time reasoning that happens when you're filling out a template.

Problem: "Design a URL shortener. Use the requirement analysis template."

My first instinct: "I'll just fill in the template quickly. Scale: high. Performance: fast. Done!"

But wait—that's not helpful. Let me actually think through each section systematically.

Step 1: Functional Requirements

My first thought: "Core features: create short URL, redirect. That's it, right?"

But let me think deeper: "What about custom aliases? Analytics? Expiration? These might be optional, but I should list them."

I'm filling in:

• Core: Create short URL, redirect to long URL
• Optional: Custom aliases, analytics, expiration
• Out of scope: User authentication, URL editing (for MVP)

Step 2: Non-Functional Requirements

My first instinct: "Scale: high. Performance: fast. Availability: high."

But that's vague: "I need numbers. Let me think about actual requirements."

I'm quantifying:

• Scale: 100M URLs/day, 10B redirects/day
• Performance: Redirect < 10ms (p99), Creation < 100ms (p99)
• Availability: 99.9% uptime
• Consistency: Eventual consistency acceptable (redirects don't need strong consistency)
• Durability: No data loss (URLs must persist)

Step 3: Constraints

My first thought: "No constraints, I can use anything!"

But that's not realistic: "Let me think about actual constraints."

I'm listing:

• Technical: Must use existing infrastructure (AWS)
• Business: Launch in 3 months
• Team: 5 engineers
• Budget: Limited (startup)

Step 4: Assumptions

My first instinct: "No assumptions, I know everything!"

But that's wrong: "I'm making assumptions. I should list them explicitly."

I'm listing:

• URLs don't expire (permanent)
• No user authentication needed (public service)
• Analytics optional for MVP
• 80% of redirects are for URLs created in last 7 days (cache strategy)

Now, let me use the API design template:

My first thought: "I'll just list endpoints. POST /shorten, GET /:shortUrl. Done!"

But the template asks for more: "Authentication, rate limiting, versioning, data models."

I'm thinking through each:

• Endpoints: POST /api/v1/shorten, GET /:shortUrl
• Authentication: API key for creation, public for redirects
• Rate limiting: 100 requests/minute per API key, 1000 redirects/minute per IP
• Versioning: URL-based (/api/v1/), backward compatible for 6 months
• Data models: Need to define request/response schemas

This is how I use templates: I don't just fill them in quickly. I think through each section, quantify everything, and make assumptions explicit.

What if a template doesn't fit? "Let's say I'm designing a real-time system. The latency estimation template might not cover WebSocket connection management."

I'm adapting: "I'll add a section for connection management, modify the latency section for real-time flows, and customize to my needs."

This is the key: Templates are starting points, not rigid rules. I customize them to my problem.

Notice how I didn't just fill in the template blindly. I thought through each section, quantified requirements, listed constraints, and made assumptions explicit. That's how templates become useful.

---

How a Senior Engineer Uses Templates

A senior engineer:

1. Customizes templates: Adapts to specific problem
2. Fills in systematically: Doesn't skip sections
3. Quantifies everything: Uses numbers, not vague statements
4. Validates assumptions: States and validates assumptions
5. Iterates: Refines template based on feedback

---

Best Practices

1. Use templates as starting point: Don't follow blindly, adapt to problem
2. Fill in systematically: Cover all sections
3. Quantify everything: Use numbers, not vague statements
4. Validate assumptions: State and validate assumptions
5. Iterate: Refine template based on feedback
6. Practice: Use templates in practice problems

---

Common Interview Questions

Beginner

Q: What are design templates and why are they useful?

A: Design templates are reusable thinking models that provide structure, speed, completeness, and confidence when designing systems. They help you avoid blank-page syndrome and ensure you cover all important areas.

---

Intermediate

Q: How do you use the requirement analysis template?

A: I fill in systematically:

1. Functional requirements (core, optional, out of scope)
2. Non-functional requirements (scale, performance, availability)
3. Constraints (technical, business, team)
4. Assumptions (list and validate)

I quantify everything (use numbers, not vague statements) and validate assumptions with the interviewer.

---

Senior

Q: You're designing a system. Walk me through your process using templates.

A: I use templates systematically:

1. Requirement Analysis: Clarify functional/non-functional requirements, constraints, assumptions
2. API Design: Define endpoints, authentication, rate limiting, data models
3. Data Modeling: Identify entities, storage strategy, indexing, access patterns
4. Latency Estimation: Map request flow, identify bottlenecks, optimize
5. Reliability Checklist: Identify single points of failure, failure scenarios, monitoring, recovery
6. System Design Answer: Present high-level architecture, detailed design, scale estimations, trade-offs, failure handling, future improvements

I customize templates to the specific problem and quantify everything.

---

Summary

Templates help you avoid blank-page syndrome and speed up reasoning:

• Requirement Analysis Template: Structure for understanding requirements
• API Design Template: Structure for designing APIs
• Data Modeling Template: Structure for modeling data
• Latency Estimation Template: Structure for estimating latency
• Reliability Checklist: Structure for ensuring reliability
• System Design Answer Format: Structure for presenting designs

Key takeaways:

• Use templates as starting point
• Fill in systematically
• Quantify everything
• Validate assumptions
• Iterate and refine
• Practice regularly

---

FAQs

Q: Should I memorize templates?

A: Not exactly. Understand the structure and concepts, then adapt to specific problems. Memorization helps with speed, but understanding helps with flexibility.

Q: Can I use templates in real work?

A: Yes. Templates are useful in real work for:

• Design reviews
• Architecture discussions
• Documentation
• Onboarding new team members

Q: What if a template doesn't fit my problem?

A: Adapt it. Templates are starting points, not rigid rules. Customize to your specific problem.

Q: How do I practice with templates?

A:

• Use templates in practice problems
• Review real-world systems and fill in templates
• Get feedback from peers or mentors
• Iterate and refine based on feedback

Q: Are templates the same as frameworks?

A: Similar but different. Templates provide structure (what to think about), while frameworks provide process (how to think). Use both together.

Q: How do I know if I'm using templates correctly?

A: You're using templates correctly if:

• You cover all important areas
• You don't miss critical components
• You can explain your design clearly
• You make trade-offs explicit

Q: Can I create my own templates?

A: Yes. Start with existing templates, then customize based on your experience and needs. Your own templates will be more useful than generic ones.
